Maytag microwave F1E4 means a failure in the appliance control board or its wiring. The first thing to try is a power cycle at the breaker, because a latched board often clears; if the code returns, the board or the harness needs testing. That is one of only a handful of Maytag microwave codes with a firm meaning. The E-series codes that appear on over-the-range models, E03, E11, E12, E13, E21, E23 and E61, are index codes whose meaning is model-specific, and anyone who tells you what E21 means without knowing your model number is guessing.
What does F1E4 mean on a Maytag microwave?
It points at the appliance control board, the board that runs the timer, the display and the relays, or at the wiring that reaches it. The maytag microwave f1e4 code is raised when the control cannot verify its own state, which is why it can appear the moment the door is shut, in the middle of a cook, or on a microwave that has been sitting untouched.
Start with a full power cycle, and do it properly: switch the breaker for the microwave circuit off, wait a minute, and switch it back. Pulling a plug is fine on a countertop model, but an over-the-range unit is usually hardwired or plugged into an outlet inside the cabinet above it, and the breaker is the safe way to reach it.
If F1E4 clears and stays away, the board latched a fault and released it. If F1E4 returns within a cycle or two, the board is reporting a live condition, and that is a repair rather than a reset.
Is it F1E4 or FIE4 on the display?
It is F1E4, with the digit one. Seven-segment displays draw a one as a single vertical stroke, which looks exactly like a capital I, and this single confusion sends people searching for a code that does not exist. The same applies to the rest of the family: F7E1 is F-seven-E-one, not F7EI.
Write down what you see as a mix of letters and digits, then check it against the code list on the Maytag microwave F1E4 page. Getting the character right is the difference between the control board and the inverter.
What do the E11 to E61 codes mean?
Less than the internet claims. On Maytag over-the-range microwaves these are index codes: numbers that point into a table in the service documentation for a particular model, rather than labels with a fixed meaning across the range. Our own code pages say so directly, and describe E11, E12, E13, E21, E23 and E61 as control, sensor or timing index codes whose meaning is model-specific.
What that does tell you is useful, even though it stops short of a part. All of them sit in the control and sensing group rather than in the high voltage group, so they describe what the board is reading rather than what the magnetron is doing. The exception worth noting is E23, which our page describes as a will-not-heat index code, and that one does involve the high voltage side and the magnetron along with the control.
The honest procedure is short. Record the code, record the model and serial number from the label inside the door frame, and have both read against the service sheet for that model. Do not order a part against an E code alone.
What does FC mean on a Maytag microwave?
FC, and the family FC E1 through FC E8, is the connectivity and control app-error group: the appliance is complaining about its network or app connection, not about cooking. A reset usually clears it, and basic cooking normally continues to work while it is displayed.
It is worth knowing this one exists, because an FC code on the display looks as alarming as any other and sends people to the phone when the microwave is working. If the unit heats, turns and times correctly, FC is not the reason to book a visit.
What does F7E1 mean on an over-the-range model?
Inverter overheat. The inverter is the power supply that feeds the magnetron on models that use one instead of a conventional transformer, and it sits in a cabinet that is also venting heat from the range below it. Our F7E1 page describes it as a ventilation or inverter failure: either the unit cannot shed heat, or the inverter itself has failed.

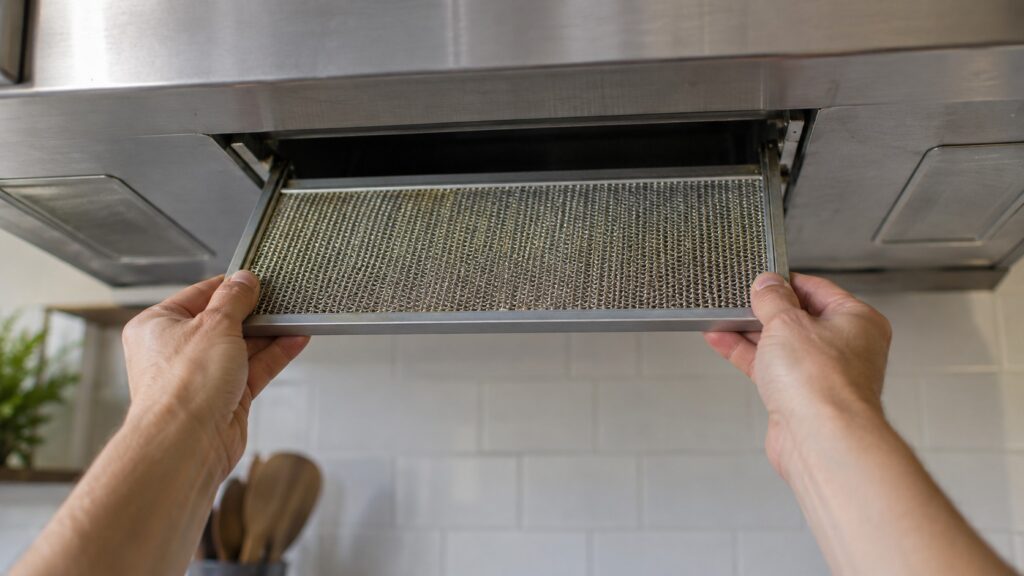

Before anything else, look at the ventilation. A grease-loaded filter, a recirculating charcoal filter that was never changed, or a duct run that was blocked during a kitchen remodel all cook the electronics above the range. Let the microwave cool for an hour, clean the filters, and retest. A microwave that runs fine cold and posts F7E1 after a long cook on the range below it is telling you about airflow.
A unit that will not heat at all is a different conversation, and it starts with our guide to a Maytag microwave that runs but will not heat.
What can I safely do before calling?
Three things, and only three. Power-cycle at the breaker. Clean the grease filters and check that the vent path above is not blocked, which our guide to how an over-the-range Maytag microwave works explains. Write down the exact code, the model number and what the unit was doing when the code appeared.
Then stop. A microwave holds a high voltage capacitor that stores a dangerous charge long after the power is off, and it does not care that the unit is unplugged. There is no owner-level test inside a microwave cabinet, which is why the safe list above ends at the filters.
When is a control board worth replacing?
When the code is stable, the ventilation is clear, and the rest of the unit works. A board is a sensible repair on a microwave that heats, turns and vents correctly and simply cannot be trusted by its own control. It is a poor repair on a unit that has also lost heating, because then two expensive assemblies are involved and the sums change.
We are an independent repair company, not a factory service arm, and over-the-range microwaves are one of the places we most often advise against a repair. Pricing starts from a diagnostic visit and we confirm the estimate before any work begins. Book Maytag microwave repair or schedule a visit with the code and the model number from the door frame label.
